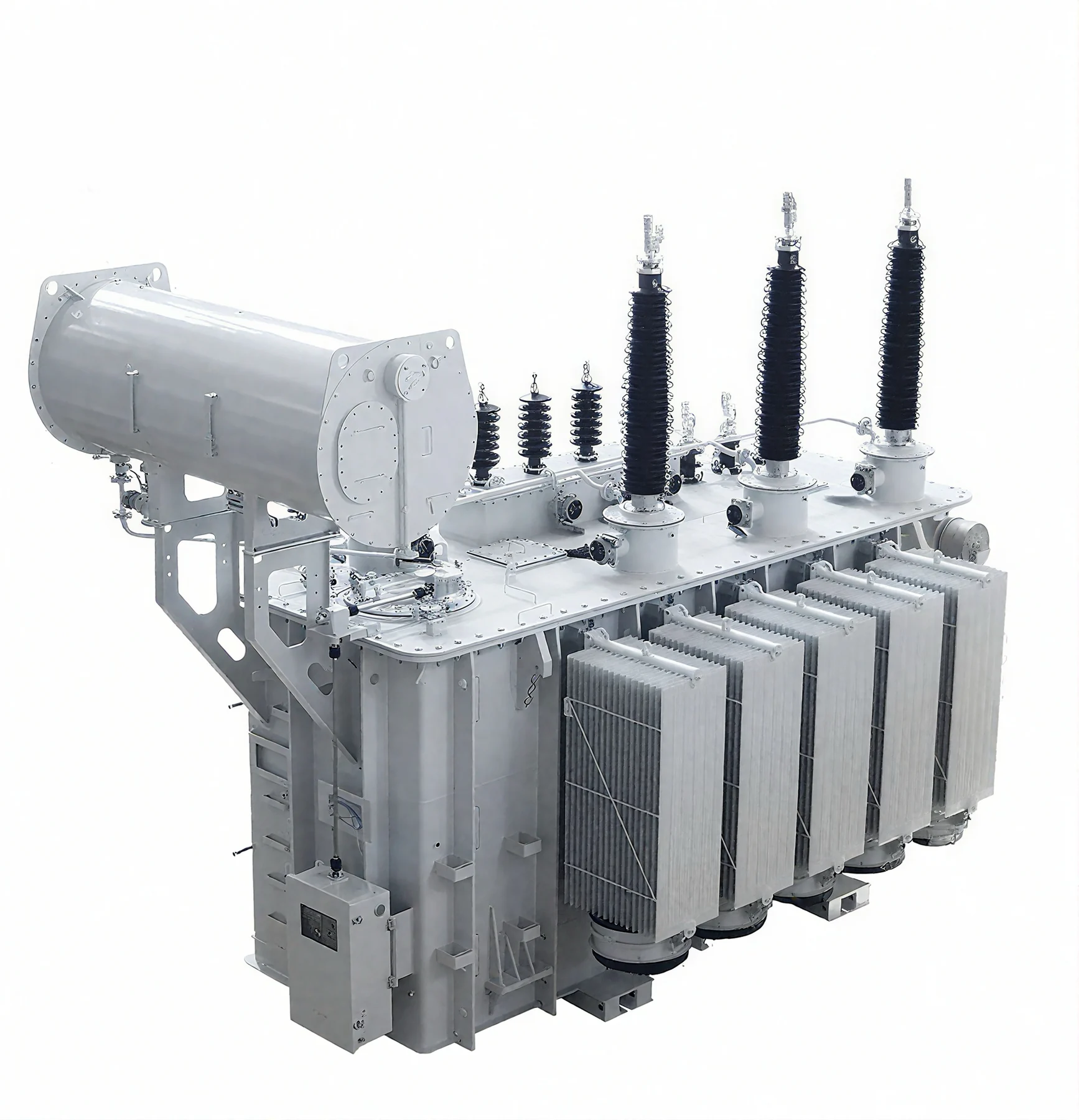

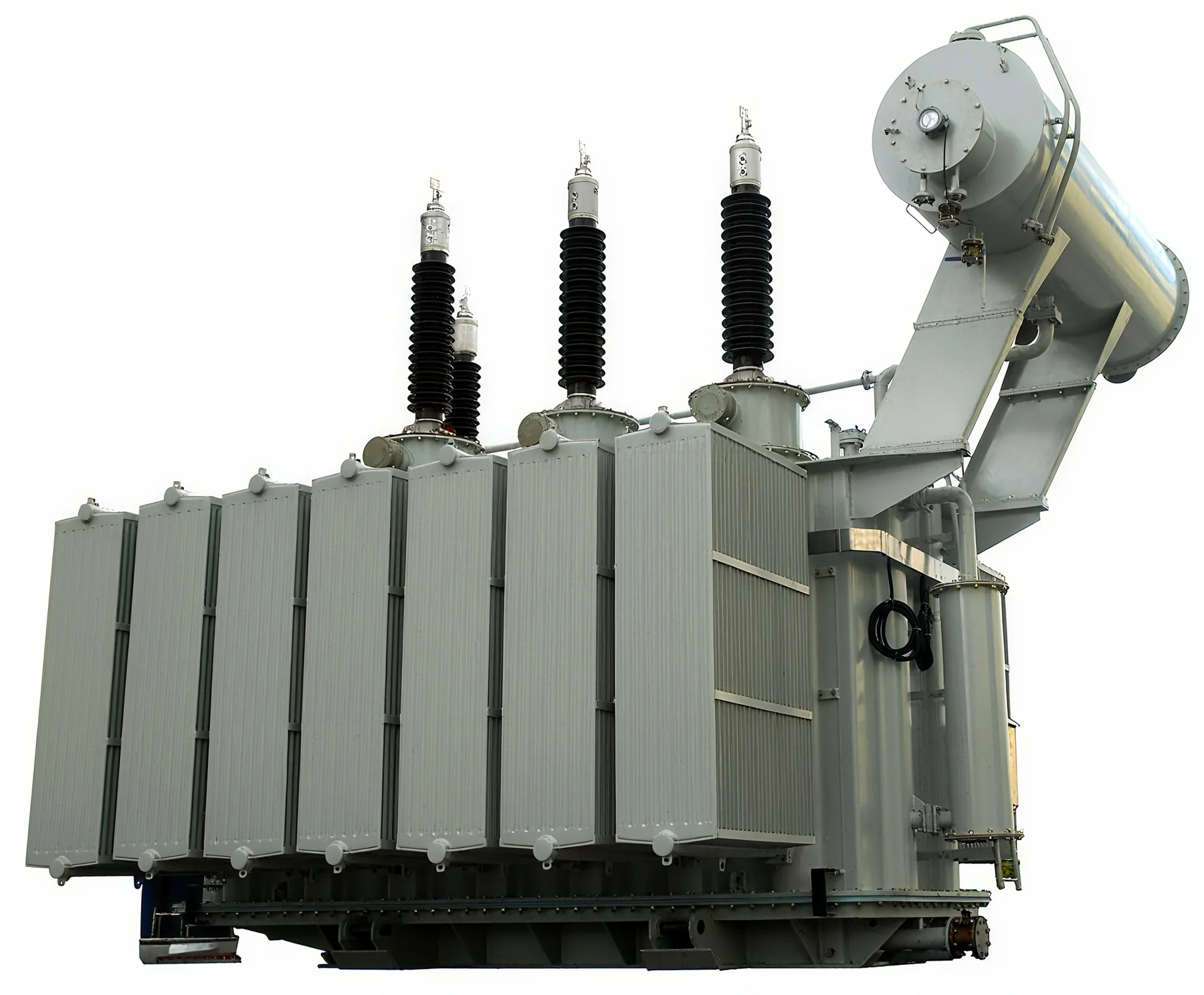

110kV Oil-Immersed Power Transformer
Oil-Immersed Transformers

110kV Oil-Immersed Power Transformer

Also known as: 110kV Power Transformer; Utility Power Transformer

The 110kV oil-immersed power transformer is designed for reliable voltage transformation and power distribution in utility, industrial and renewable-energy networks.

Request a QuoteWhatsApp
Final voltage, capacity, losses, impedance, accessories, dimensions and applicable standards are confirmed according to the project specification and quotation.
Product overview

Design and operating characteristics

High-voltage windings may use multilayer cylindrical or continuous winding structures to improve impulse-voltage distribution. Low-voltage windings can be designed with cylindrical or helical structures to provide balanced ampere-turn distribution and strong resistance to mechanical forces during short-circuit events.

The transformer active part incorporates positioning and fastening systems to reduce movement during transportation and long-term operation. Grain-oriented silicon steel and optimized joint construction help reduce core losses and operating noise. External surfaces can be treated for humid, polluted, industrial or coastal environments.

Key features

  • Suitable for 110kV-class power systems
  • On-load and off-circuit tap-changing options
  • Optimized high- and low-voltage winding structures
  • Strong mechanical and short-circuit withstand capability
  • Low-loss grain-oriented silicon-steel core
  • Reinforced active-part positioning for transportation
  • Corrosion-resistant surface-treatment options
  • Configurable cooling and monitoring systems

Typical applications

Utility substations, generation facilities, renewable-energy stations, steel plants, mining facilities, petrochemical sites and large industrial power networks.

Quotation preparation

Information to include with your RFQ

  • Rated capacity and primary/secondary voltage
  • Frequency, phase and vector group
  • Impedance and efficiency or loss requirements
  • Tap range and OLTC or off-circuit tap requirement
  • Cooling method, bushings, monitoring and protection accessories
  • Installation environment, applicable standard, destination and delivery date

Technical specifications, single-line diagrams and project documents can be emailed to sales@boreviax.com.

110kV Oil-Immersed Power Transformer product configuration
