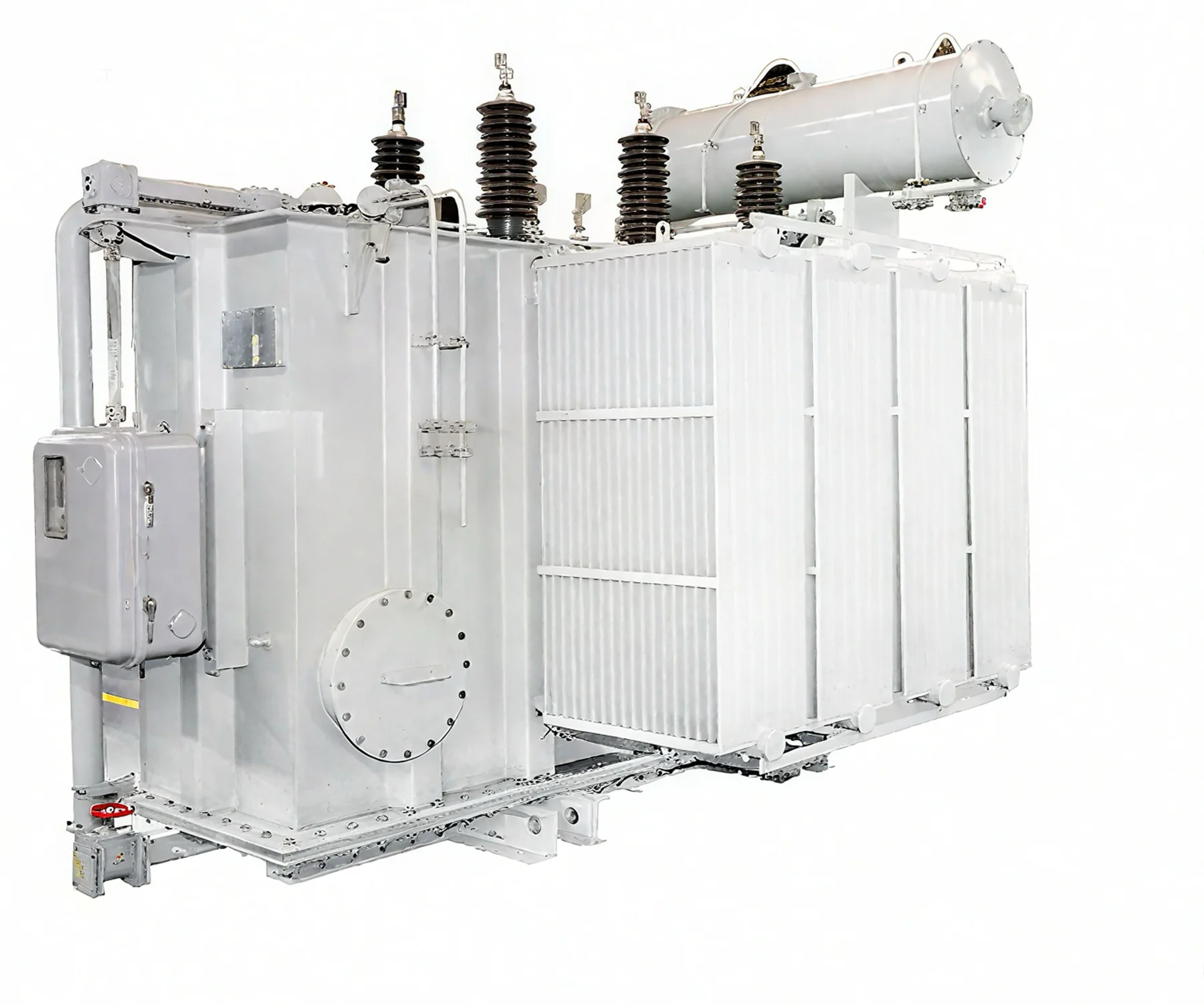

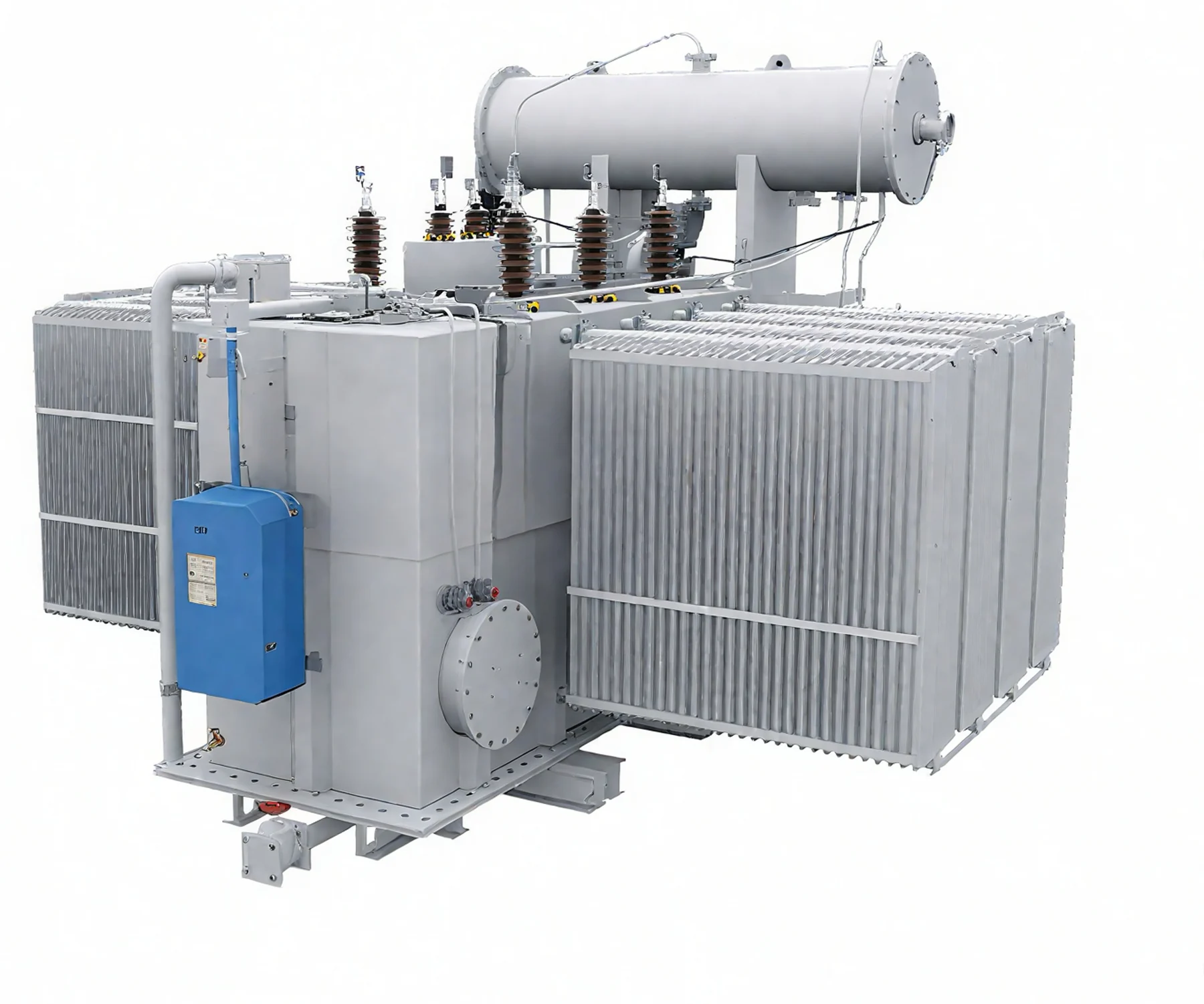

35kV Oil-Immersed Power Transformer
Also known as: 35kV Power Transformer; Medium-Voltage Oil-Immersed Transformer
Boreviax supplies 35kV oil-immersed power transformers for medium-voltage substations, industrial distribution systems and renewable-energy grid-connection projects.
Final voltage, capacity, losses, impedance, accessories, dimensions and applicable standards are confirmed according to the project specification and quotation.
Product overview
Design and operating characteristics
The transformer uses a reinforced core-and-coil structure designed to maintain mechanical stability during transportation and fault conditions. High- and low-voltage windings can incorporate longitudinal oil ducts to improve oil circulation, reduce the temperature difference between the winding conductor and transformer oil, and control winding hot-spot temperature.
The product can be configured with conservator tanks, external radiators, protection devices and tap-changing equipment according to system voltage, rated capacity and site requirements.
Key features
- Designed for 35kV medium-voltage systems
- Reinforced clamping and active-part structure
- Strong resistance to transportation and short-circuit forces
- Longitudinal winding oil ducts for improved cooling
- Low-loss and low-noise design options
- On-load or off-circuit tap-changing configurations
- Flexible radiator and accessory arrangement
Typical applications
Industrial substations, renewable-energy projects, mining facilities, commercial power systems, municipal infrastructure and regional distribution networks.
Quotation preparation
Information to include with your RFQ
- Rated capacity and primary/secondary voltage
- Frequency, phase and vector group
- Impedance and efficiency or loss requirements
- Tap range and OLTC or off-circuit tap requirement
- Cooling method, bushings, monitoring and protection accessories
- Installation environment, applicable standard, destination and delivery date
Technical specifications, single-line diagrams and project documents can be emailed to sales@boreviax.com.
