Oil-Immersed Transformers

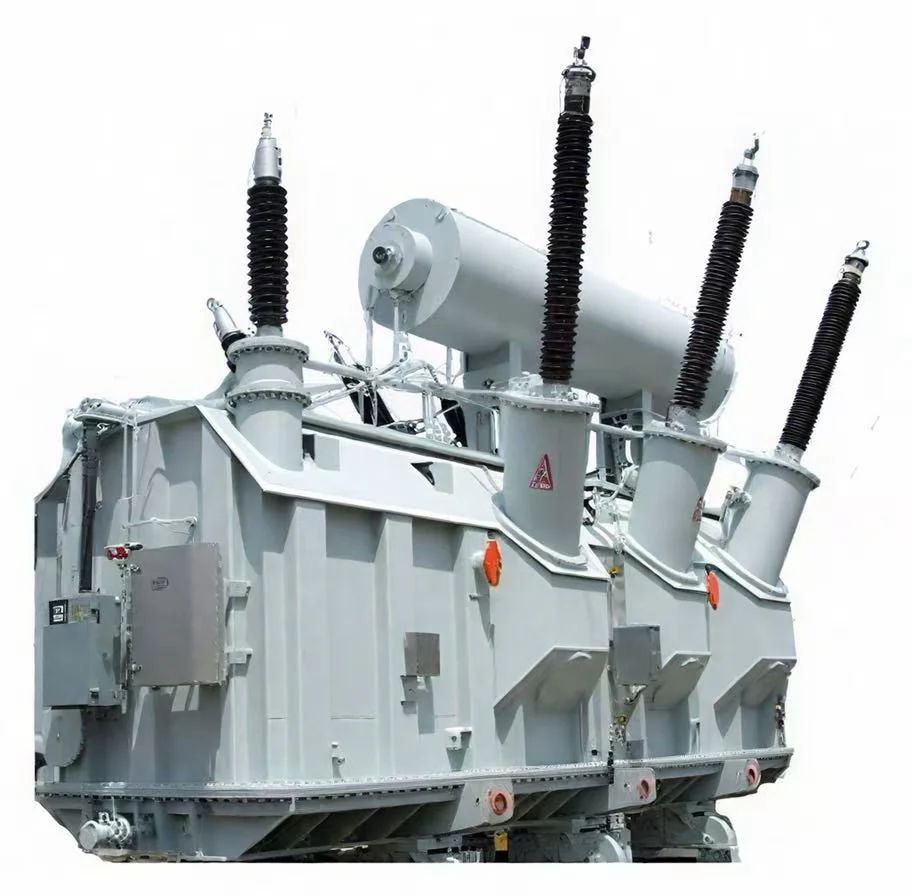

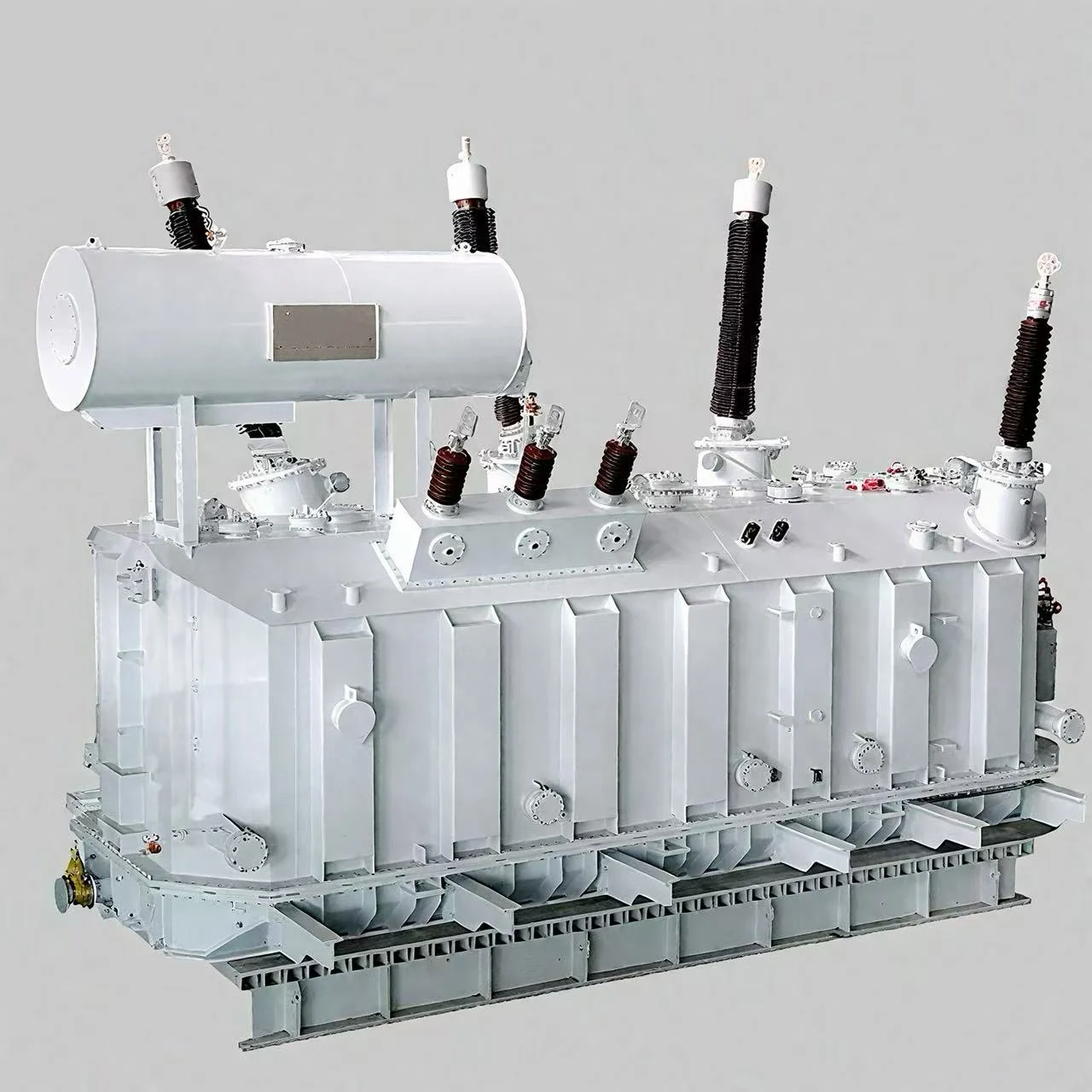

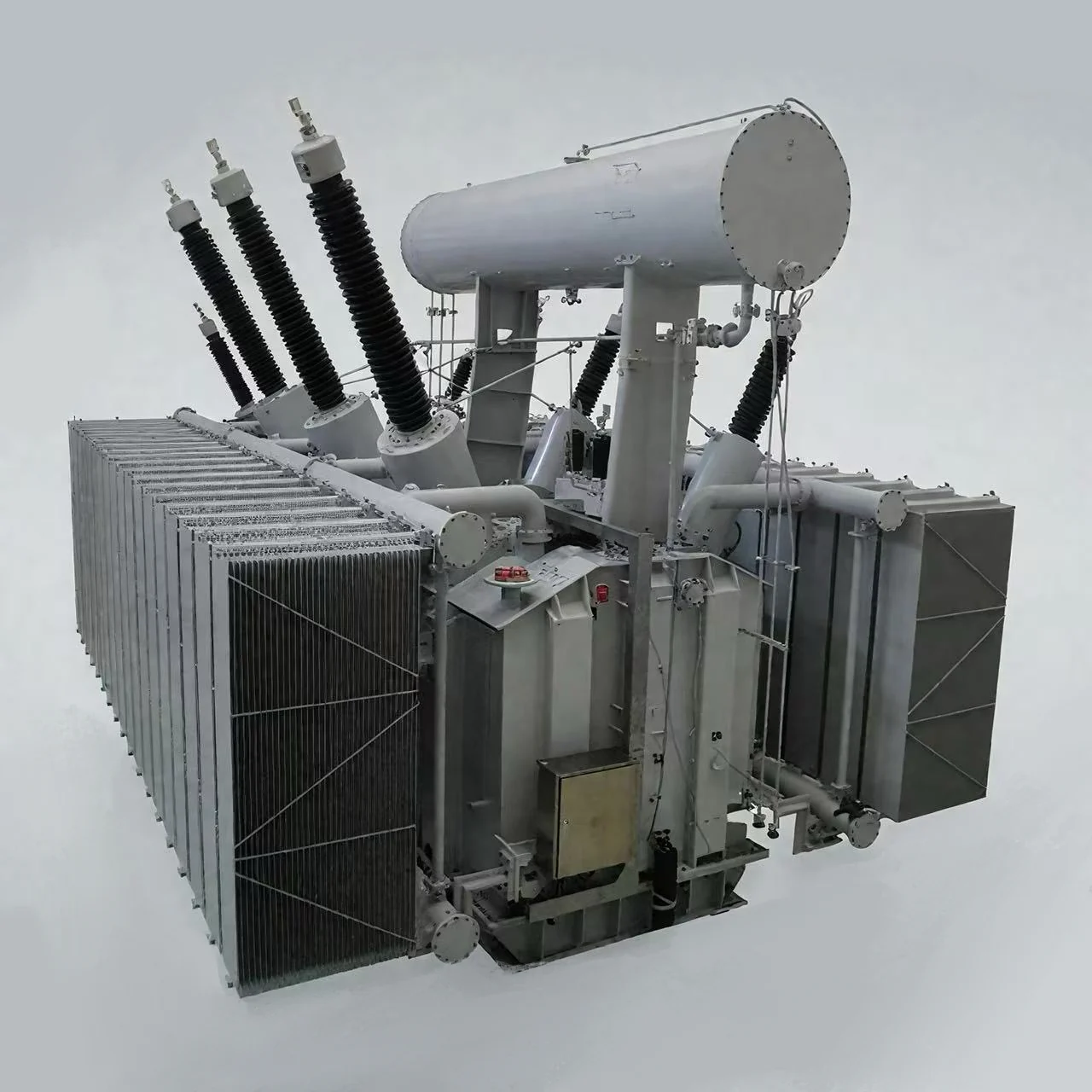

220kV Oil-Immersed Power Transformer
Also known as: 220kV Power Transformer; High-Voltage Oil-Immersed Transformer
Boreviax supplies 220kV oil-immersed power transformers for high-voltage transmission, utility substations, power generation facilities and large industrial power systems.
Final voltage, capacity, losses, impedance, accessories, dimensions and applicable standards are confirmed according to the project specification and quotation.
Product overview
Design and operating characteristics
The transformer can be engineered using coordinated electrical, magnetic, thermal and mechanical design methods to achieve reliable insulation performance, controlled temperature rise, reduced operating losses and strong mechanical stability. The core and winding assembly is designed to withstand transportation forces, normal operating stresses and short-circuit conditions.
Depending on project requirements, both on-load tap-changing and off-circuit tap-changing configurations are available. Cooling systems, bushings, protection devices, monitoring instruments and surface-treatment systems can also be customized for different operating environments.
Key features
- Designed for 220kV-class power systems
- On-load or off-circuit tap-changing options
- Low-loss magnetic-core and winding design
- Strong short-circuit withstand capability
- Controlled temperature rise and efficient cooling
- Reinforced active-part and transportation structure
- Configurable monitoring and protection accessories
- Suitable for outdoor high-voltage substations
Typical applications
Utility substations, power plants, wind and solar substations, large industrial facilities, mining operations and petrochemical power systems.
Quotation preparation
Information to include with your RFQ
- Rated capacity and primary/secondary voltage
- Frequency, phase and vector group
- Impedance and efficiency or loss requirements
- Tap range and OLTC or off-circuit tap requirement
- Cooling method, bushings, monitoring and protection accessories
- Installation environment, applicable standard, destination and delivery date
Technical specifications, single-line diagrams and project documents can be emailed to sales@boreviax.com.
